Hey there! As a supplier of 12m boom sprayers, I'm super stoked to share with you all about the boom folding mechanism of these awesome machines.
Let's first talk about why the boom folding mechanism is such a big deal. A 12m boom sprayer is used for a variety of agricultural spraying tasks. When it's time to hit the fields, we want that wide boom to cover as much ground as possible, getting the job done quickly and efficiently. But when it's time to transport the sprayer from one field to another or to store it, that 12m boom can be a real hassle if it can't be folded.
So, how does the boom folding mechanism of a 12m boom sprayer work? Well, it typically consists of a few key components. First off, there are the hydraulic cylinders. These are like the muscles of the boom folding system. Hydraulic power is used because it's strong and reliable. The hydraulic cylinders are connected to the boom sections. When the operator activates the control system, hydraulic fluid is pumped into the cylinders, which then extend or retract. This movement causes the boom sections to fold or unfold.
The boom is usually divided into multiple sections. For a 12m boom, it might be split into three or four sections on each side. These sections are connected by hinges. The hinges allow the boom to bend at specific points, enabling the folding process. The design of the hinges is crucial. They need to be strong enough to support the weight of the boom and the spraying equipment attached to it. At the same time, they have to be smooth - operating so that the folding and unfolding process is seamless.
Another important part of the mechanism is the control system. This is what the operator uses to tell the boom when to fold and unfold. It can be a simple joystick - based system in the cab of the sprayer. With just a few movements of the joystick, the operator can control the hydraulic cylinders and make the boom do what they want. Some modern control systems even come with automated features. For example, they can be programmed to fold the boom to a specific angle or to a pre - set position, which makes the whole process even more convenient.
Now, let's talk about the benefits of a well - designed boom folding mechanism for a 12m boom sprayer. First of all, it makes transportation a breeze. Without the ability to fold the boom, transporting a 12m sprayer would require a large, open - bed trailer and a lot of space on the road. But with a foldable boom, the sprayer can be easily loaded onto a regular truck or trailer. It can also be maneuvered through narrow gates and pathways, getting to different fields with ease.
Secondly, it's great for storage. A folded boom takes up much less space in a barn or storage shed. This means you can store more equipment in the same area, or you can use the extra space for other things on your farm.

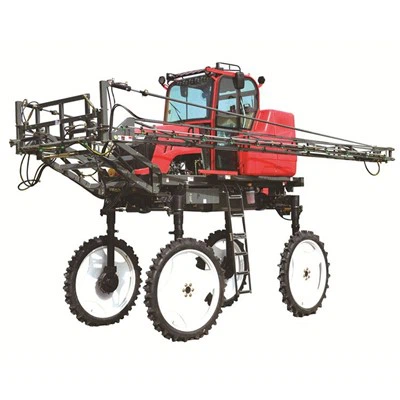

In addition to the 12m boom sprayer, we also offer other great options. If you're looking for a more compact option, check out our Four - wheel Sprayer. It's a great choice for smaller fields or areas with limited access. For those who need a wider spraying width, our 20m Boom Sprayer is the way to go. And if you're dealing with tall crops, our High Ground Clearance Boom Sprayer will ensure you can spray without any issues.
If you're in the market for a boom sprayer, whether it's the 12m one or one of our other models, we're here to help. Our boom folding mechanisms are designed with the latest technology and high - quality materials to ensure long - lasting performance. We understand the needs of farmers and agricultural workers, and we're committed to providing equipment that makes your job easier and more efficient.
So, if you're interested in learning more about our products or if you're ready to make a purchase, don't hesitate to reach out. We're happy to answer any questions you have and to discuss custom solutions that fit your specific needs. Whether you're a small - scale farmer or a large agricultural operation, we have the right boom sprayer for you.
